Growatt MOD 10~15KTL3-X2 10kw 12kw 15kw On-Grid Solar Inverter with Triple Phase Output String Inverter for Solar Battery

Growatt MOD 10~15KTL3-X2 10kw 12kw 15kw On-Grid Solar Inverter with Triple Phase Output String Inverter for Solar Battery

Overview
Recommended Products

Product Description

product growatt mod 1015ktl3 x2 10kw 12kw 15kw on grid solar inverter with triple phase output string inverter for solar battery-1

product growatt mod 1015ktl3 x2 10kw 12kw 15kw on grid solar inverter with triple phase output string inverter for solar battery-2

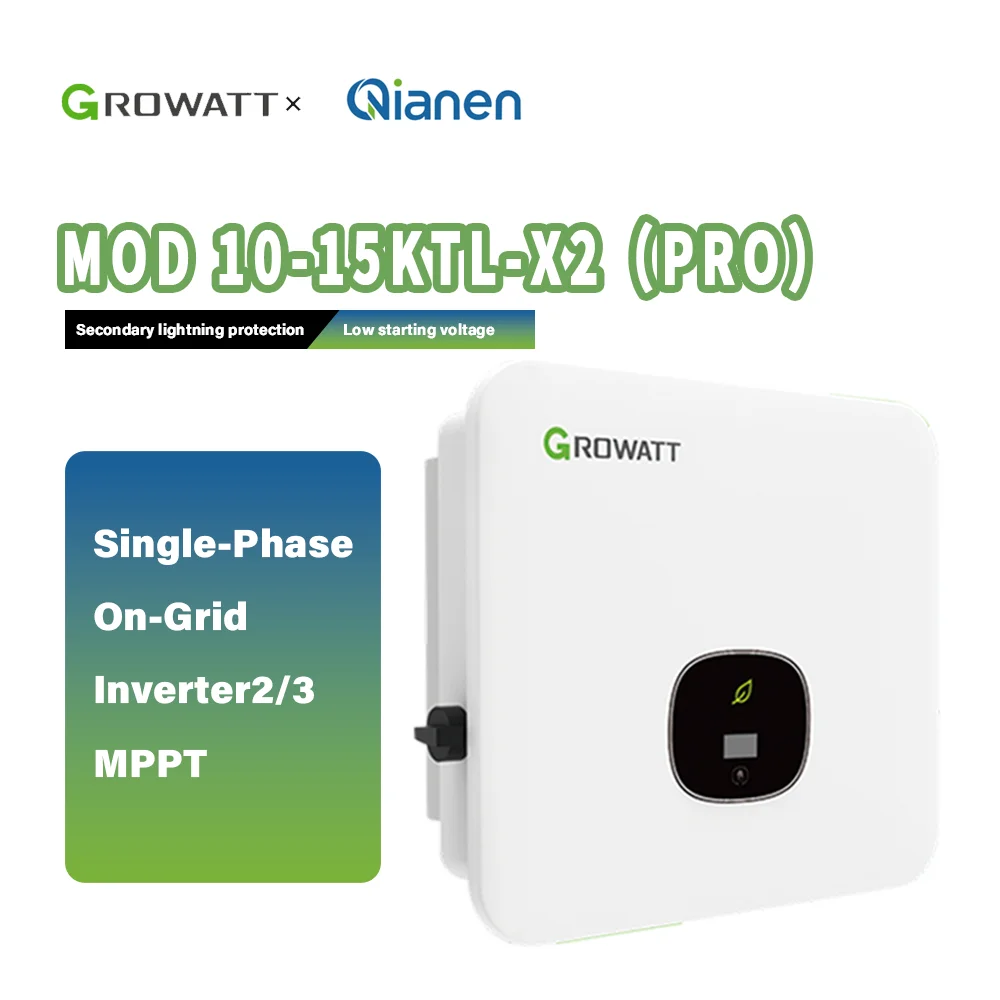

MOD 10~15KTL3-X2(Pro)

· Dual-channel MPPT

· Single string with 20A ultra-high current

· Low startup voltage, enabling earlier

power generation

· Wide operating voltage range, extending

power generation time

· Dual-level AC/DC lightning protection

· OLED display, touch buttons

product growatt mod 1015ktl3 x2 10kw 12kw 15kw on grid solar inverter with triple phase output string inverter for solar battery-3

Product Paramenters

Data Table	MOD 10KTL-X2(pro)	MOD 12KTL-X2(pro)	MOD 15KTL-X2(pro)
Input data (DC)
Maximum DC input power	15000W	18000W	225000W
Maximum DC input voltage	1100V
starting voltage	160V
MPPT operating voltage range / rated input voltage	140-1000V/600V
Maximum input current per MPPT	20A
Number of MPPTs / Number of series strings per MPPT	2/1+1
Output data (AC)
Rated AC output power	10000W	12000W	15000W
Maximum AC output power	11000VA	13200VA	16500VA
Maximum AC output current	33.5A	20A	25A
Rated output voltage/range	400V/340-440V
Rated grid frequency/range	50Hz,60Hz/± 5HZ
General data
type of cooling	Natural convection

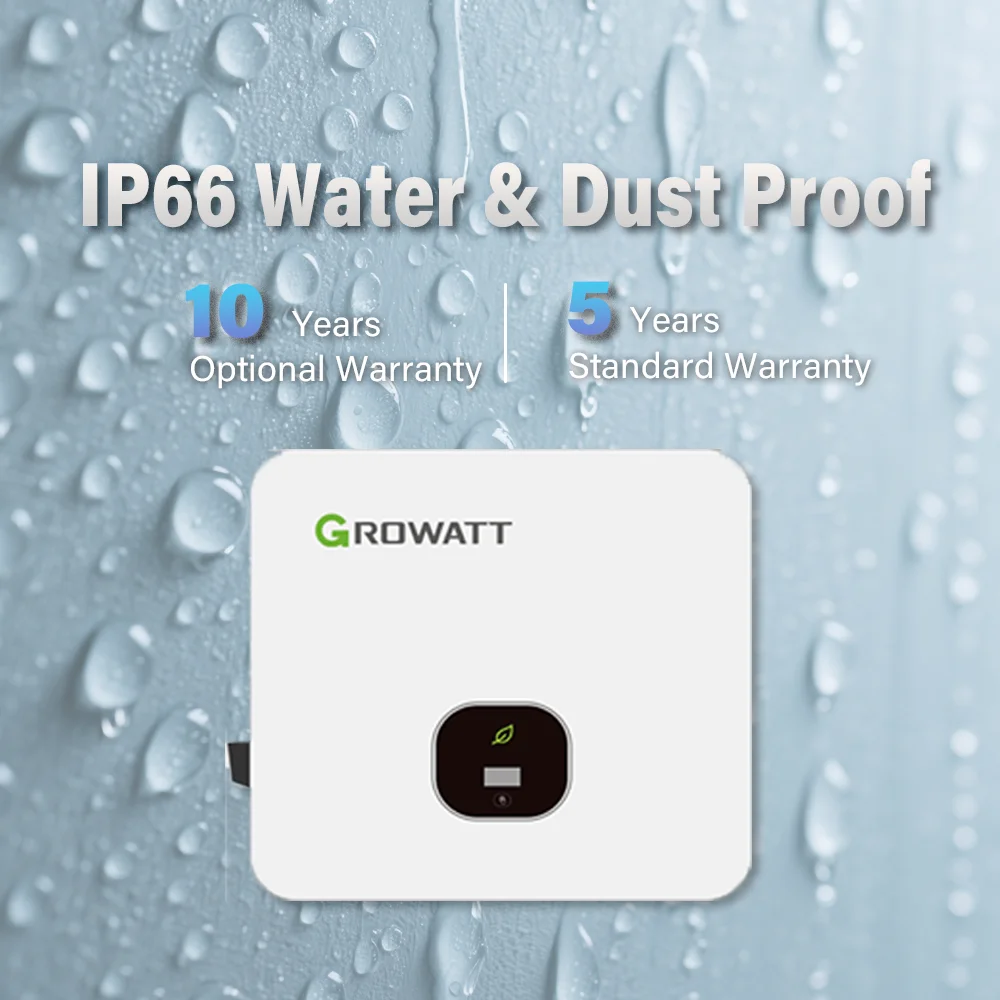

Protection level	IP66
Direct current connection	H4/MC4 (optional)
Warranty: 5 years / 10 years	Standard/Optional

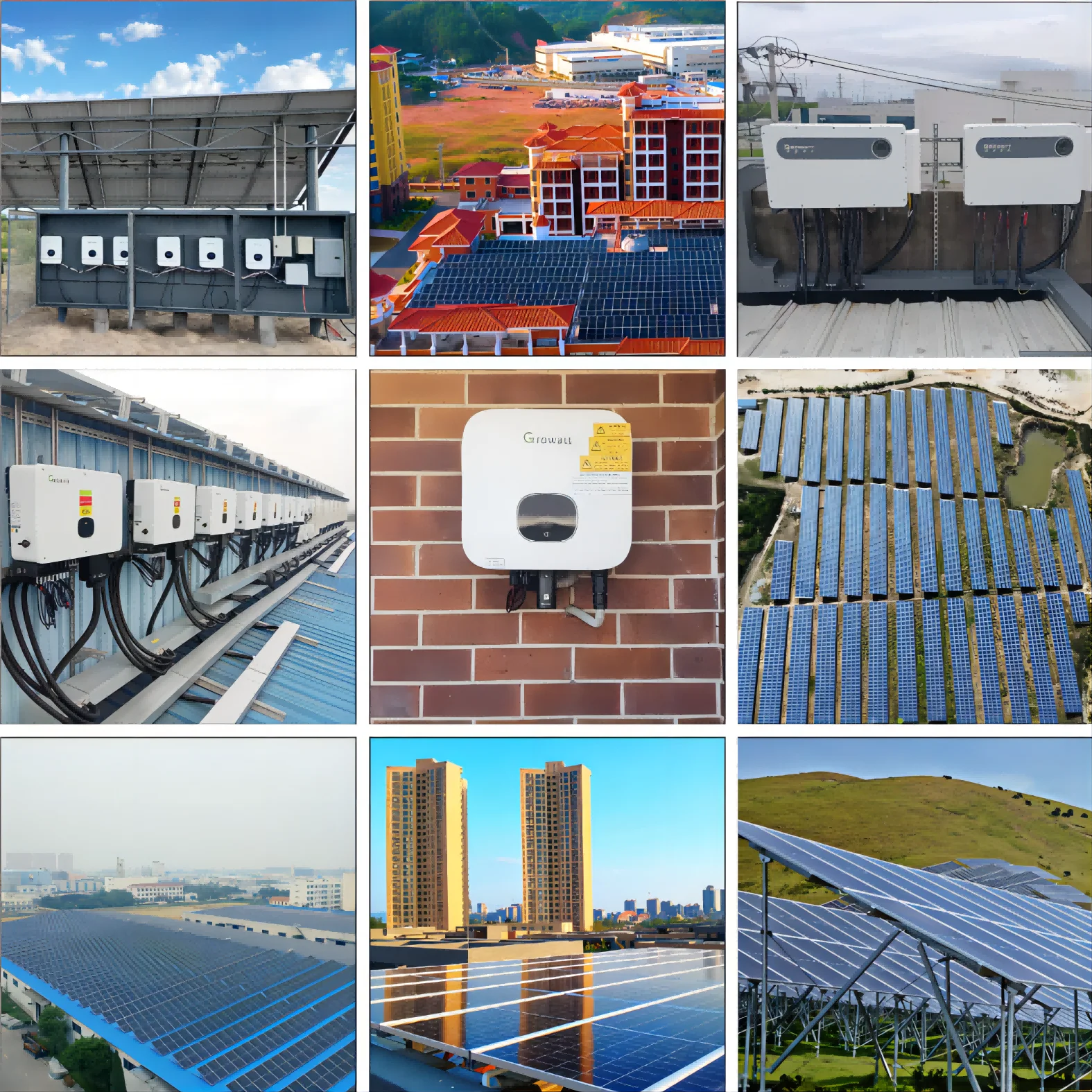

Project Case
