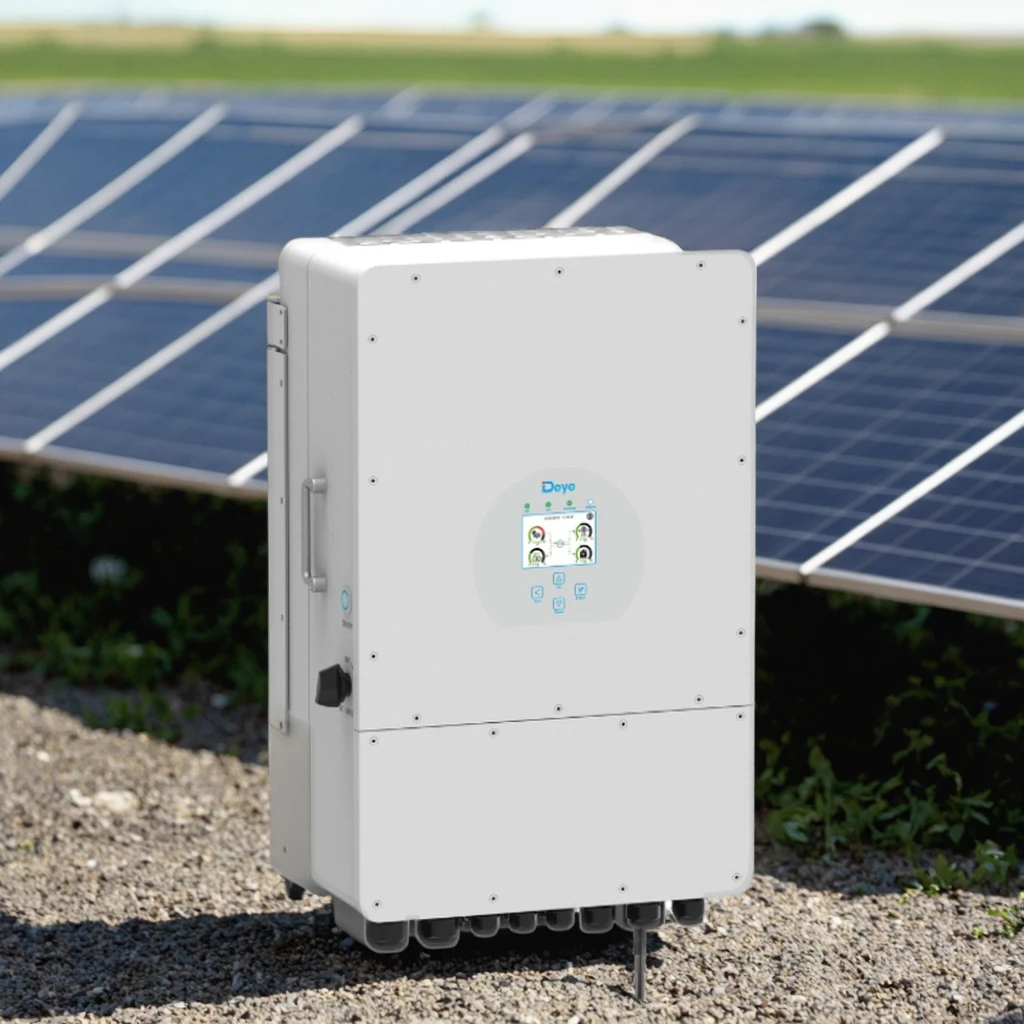

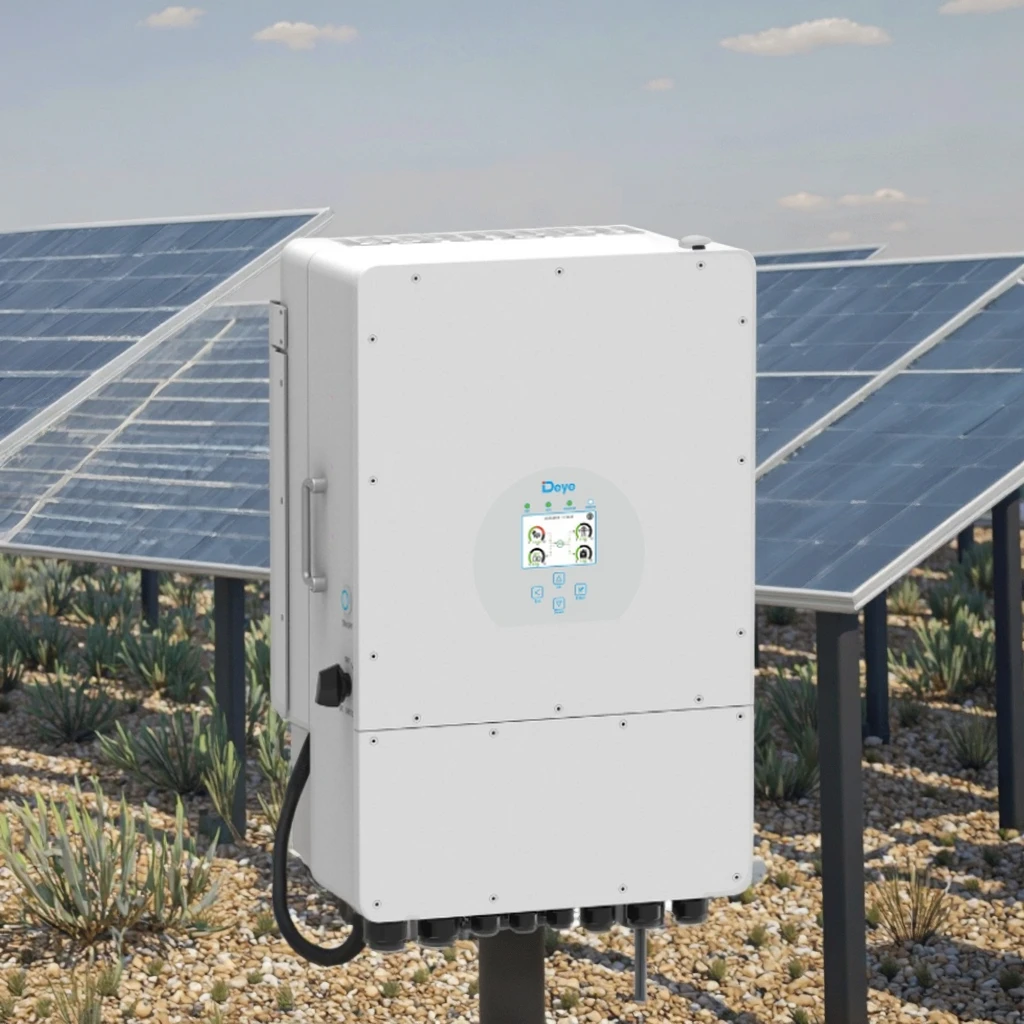

For Deye 12kW Commercial Hybrid Solar Inverter SUN-12K-SG04LP3-EU 3-Phase PV System with Energy Storage Backup Power Solution

For Deye 12kW Commercial Hybrid Solar Inverter SUN-12K-SG04LP3-EU 3-Phase PV System with Energy Storage Backup Power Solution

Overview
Recommended Products

Product Description

product for deye 12kw commercial hybrid solar inverter sun 12k sg04lp3 eu 3 phase pv system with energy storage backup power solution-1

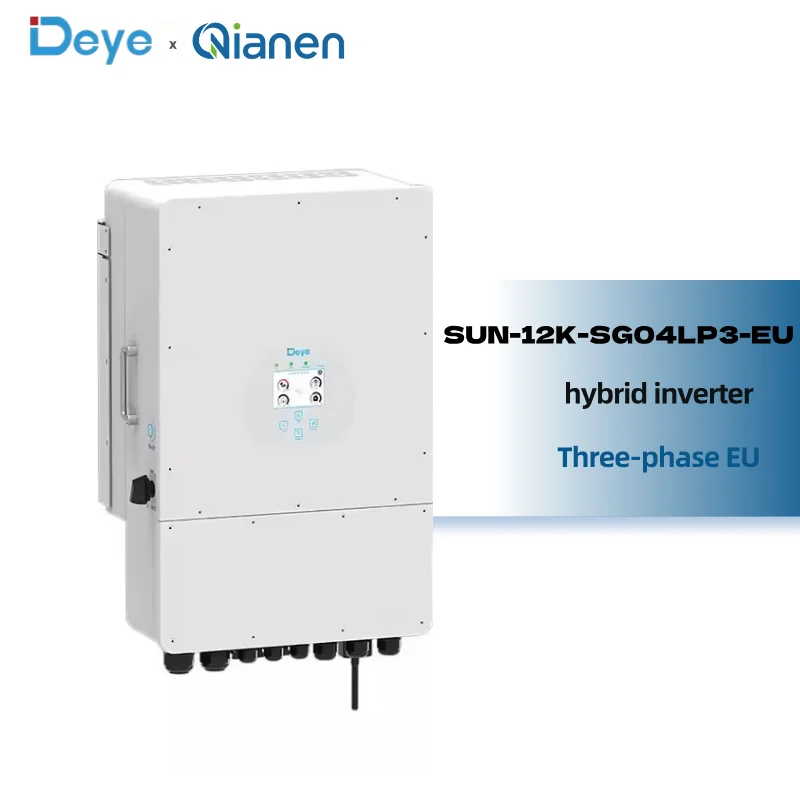

Three PhaseHybrid inverter

SUN-12K-SG04LP3-EU

·100% unbalanced output, max.outputup to 50% rated power for each phase.

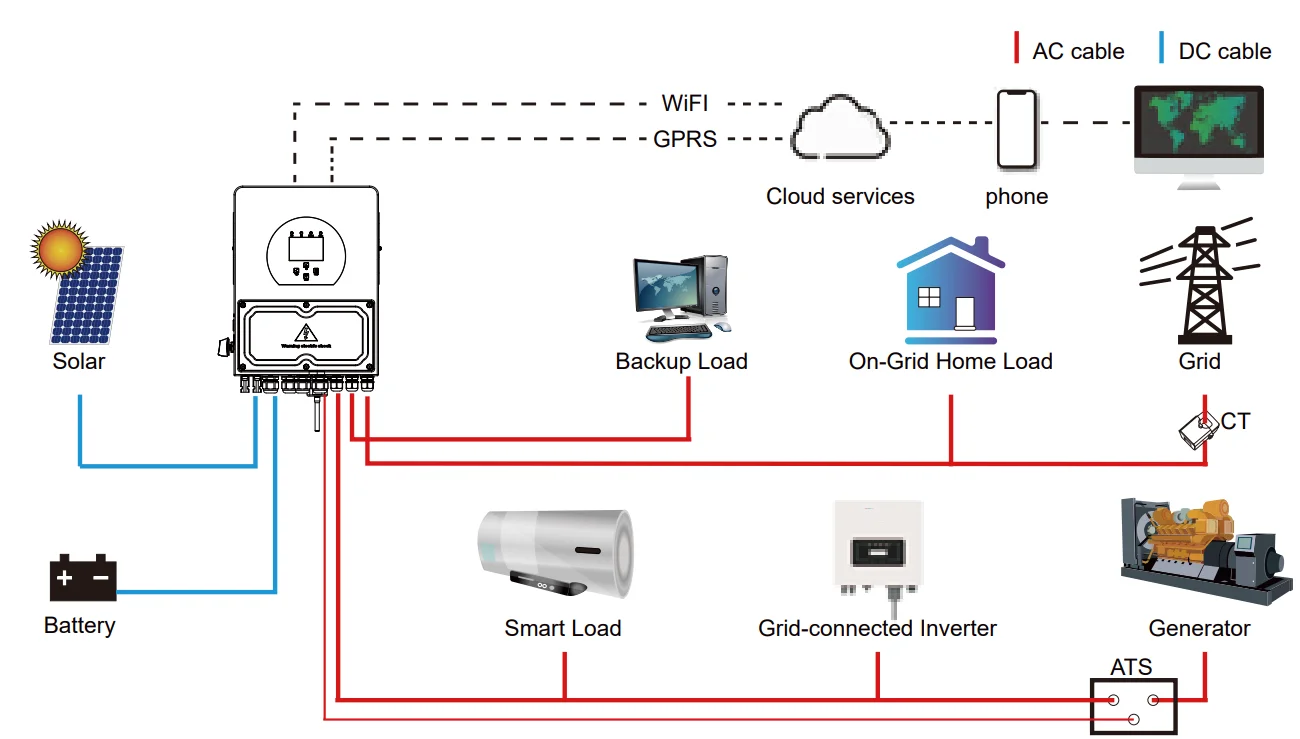

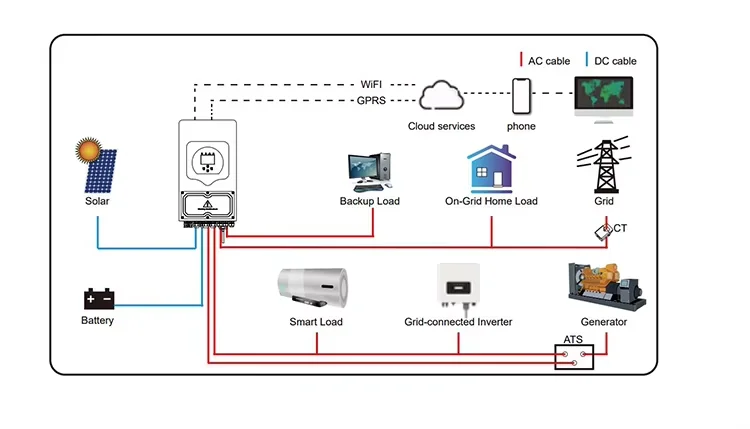

·AC couple to retrofit existing solar system. ·Max.10 pcs parallel for on-grid and off-grid operation, Support multiple batteries

parallel.

·Max.charging/discharging current of 240A. ·48V low voltage battery, transformer isolation design. ·6 time periods for battery charging/discharging. ·Support storing energy from diesel generator.

Model	SUN-12K-SG04LP3-EU
Battery input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	240
Max.Discharging Current(A)	240
Charging Strategy for Li-ion	Self-adaption to BMS
Battery Number of battery input	1
PV string input Data
Max. PV Input Power (W)	15600
Max. PV Input Voltage (V)	800
Start-up Voltage (v)	160
MPPT Voltage Range(V)	200-650
Rated Pv input Voltage (V)	550
Max. operating Pv input Current (A)	26+13
Max. Input Short-Circuit Current (A)	34+17
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracke	2+1
AC input/0utput Data
Rated AC Input/Output Active Power (w)	12000
Max AC input/Output Apparent Power (VA)	13200
Peak Power (off-grid)(w)	2 times of rated power.10s
Rated AC Input/Output Current(A)	18.2/17.4
Max AC input/Output Current(A)	20/19.1
Max. Three-phase Unbalanced Output Current (A)	27.3/26.1
Max. Continuous AC Passthrough (grid to load) (A)	45
Rated input/Output Voltage/Range(v)	220/380V 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range	50/45-55,60/55-65
Power Factor Adjustment Range	0.8 leading-0.8lagging
Communication Interface	RS485/RS232/CAN
General Data
Ingress Protection(lP) Rating	IP 65
Cabinet size(wHD)mm	422x658x254 （mm）(Excluding Connectors and Brackets)
Weight（kg）	38
Warranty	5 Years/10 Years

product for deye 12kw commercial hybrid solar inverter sun 12k sg04lp3 eu 3 phase pv system with energy storage backup power solution-3

Product Paramenters

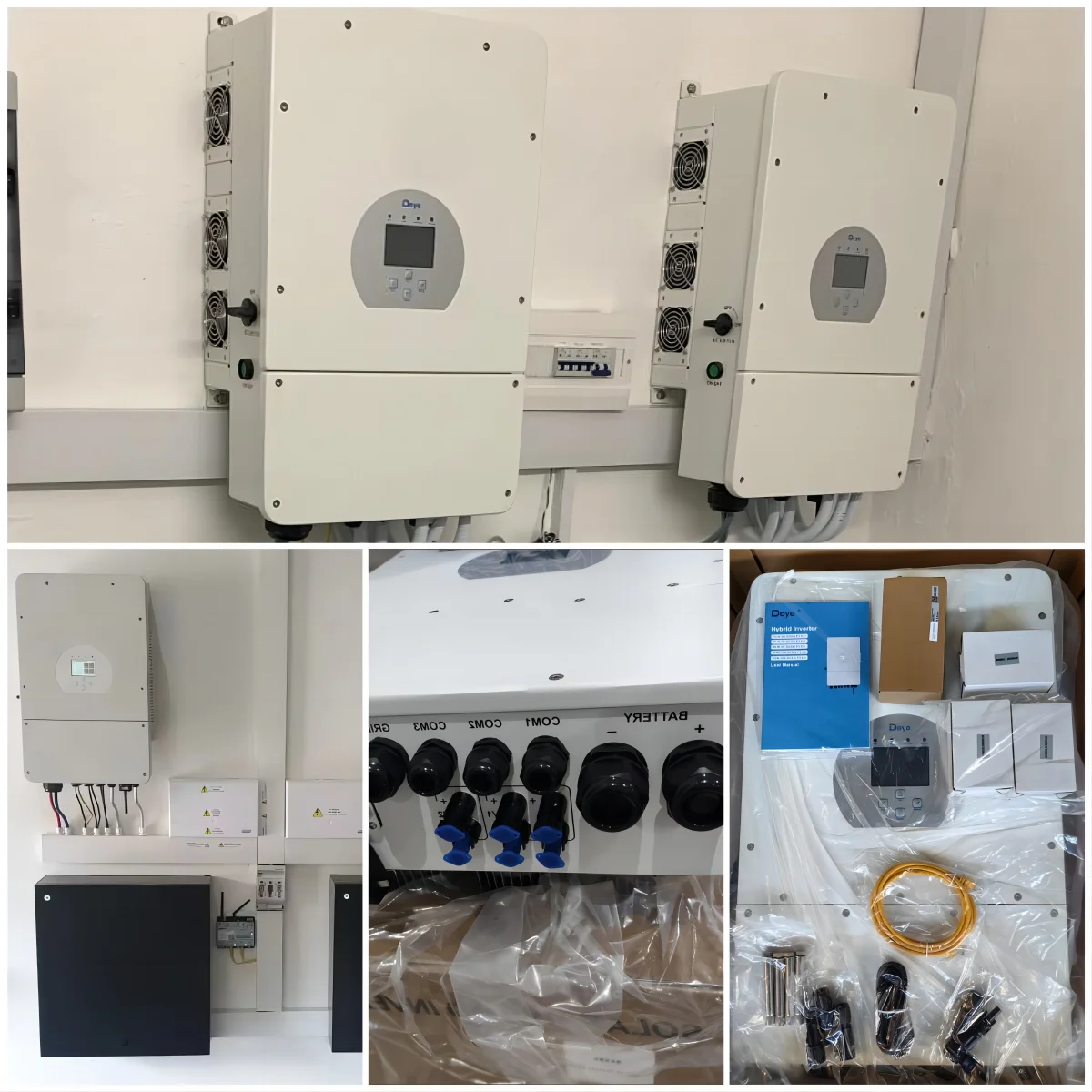

Project Case

product for deye 12kw commercial hybrid solar inverter sun 12k sg04lp3 eu 3 phase pv system with energy storage backup power solution-4

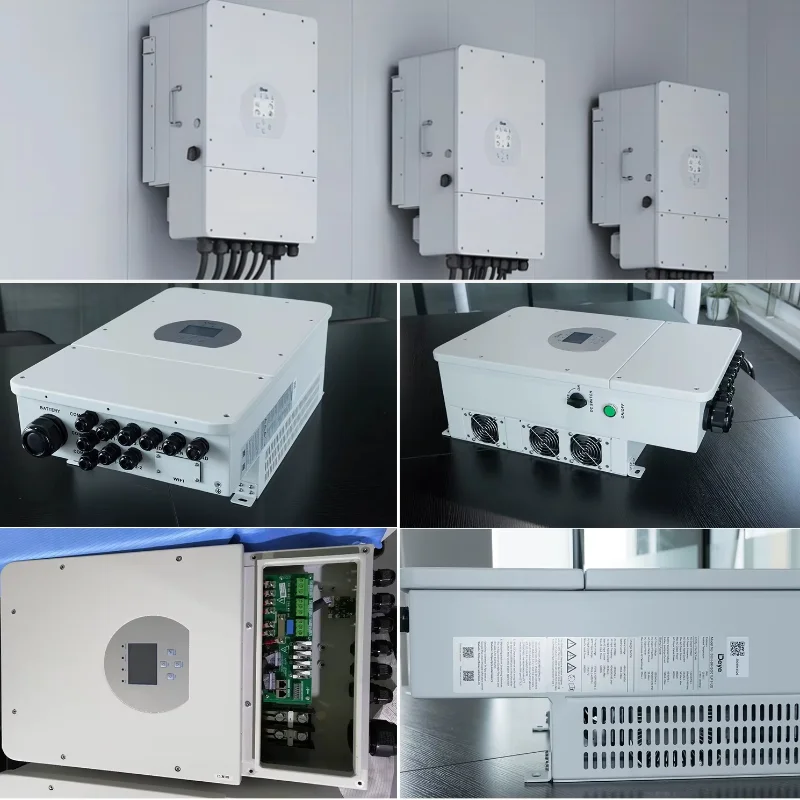

Product packaging
